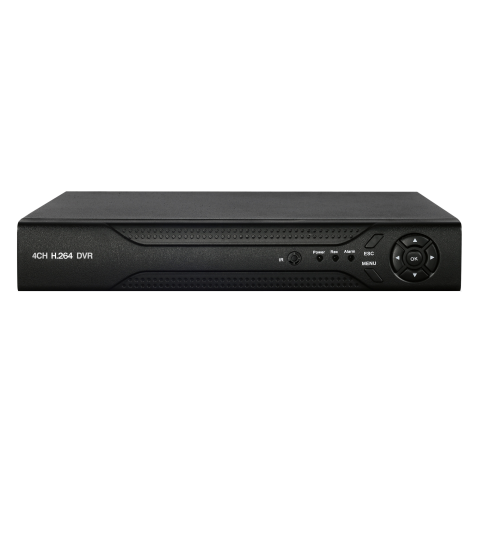

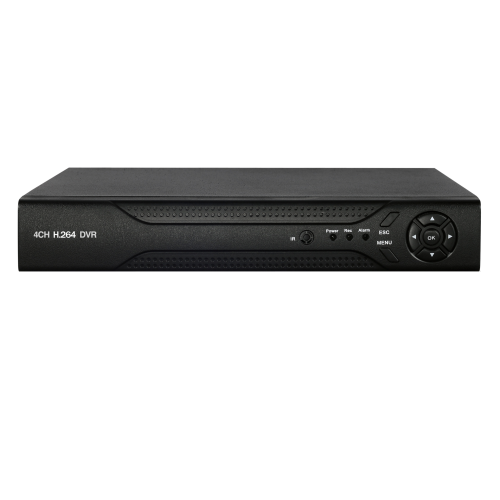

Tyjoon H.264 4CH 1080N (5 in 1) AHD DVR
- Product Code: TR-005-4CHA
- Availability: Out Of Stock
-
$150.00
- Ex Tax: $130.43
Video Comperssion:H.264
Video System:PAL/NTSC
Display Frame Rate:PAL:100fps @ D1,120fps @D1
Recording Frame Rate:PAL:100fps @ D1,120fps @D1
Network:RJ45 10M/100M
Net Protocol:TCP/IP,PPPoE,DHCP,DDNS
PTZ Control:RS-485
HDD Interface:SATA port, Max:4TB
Playback Mode:Normal Play/Fast Forward/Fast
Rewind/Frame by Fame
USB:USB Backup/usb2.0
Power adapter:DC12V/2A
| Model | TR-005-4CHAN |
| Video Compression | H.264 |
| Video System | NTSC / PAL |
| Operation System | PAL/NTSC |
| Video Input / Output | BNC 4-Channel Input / 4-Channel Output |
| Other Video Output | HDMI/VGA |
| Audio Input / Output | RCA 4-Channel Input / 4-Channel Output |
| Display Frame Rate | NTSC: 120 fps @ D1 / PAL: 100 fps @ D1 |
| Display Resolution | NTSC: D1 (704 x 480) / PAL: D1 (704 x 576) |
| Recording Frame Rate | NTSC: 120 fps @ CIF / PAL: 100 fps @ CIF |
| Record Resolution | 720P/960P/1080N |
| Record Mode | Continuous / Time Schedule / Motion Detection |
| Recording Pack Time | 15/30/45/60mins Selectable |
| HDD Support | MAX 1pcs 6TB HDD |
| Network | RJ45, 10M/100M |
| Net Protocol | TCP/IP, PPPoE, DHCP and DDNS |
| Remote Access | LAN or Internet Browsing |
| PTZ Control | RS-485 |
| HDD Interface | SATA, Support up to 4TB |
| Playback Mode | Normal Play /Fast Forward /Fast Rewind/ Frame by Frame |
| USB | USB Backup / USB 2.0 |
| Remote Control | IR Remote Control |
| Power Supply | DC12V, 2A |
| Dimension | 260mm (L) x 240mm (W) x 45mm (H) |
